Manitou MT-X625

Max. capacity
2500 kg
Max. lifting height
5.85 m
Maximum outreach
3.40 m
Overall length to carriage
3.83 m
Length to face of forks
3.90 m
Overall width
1.81 m
Overall height
1.92 m
Wheelbase
2.30 m
Ground clearance
0.33 m
Overall cab width
0.79 m
Tilt-up angle
12 °
Tilt-down angle
117 °
External turning radius (over tyres)
3.31 m
Overall weight
4800 kg

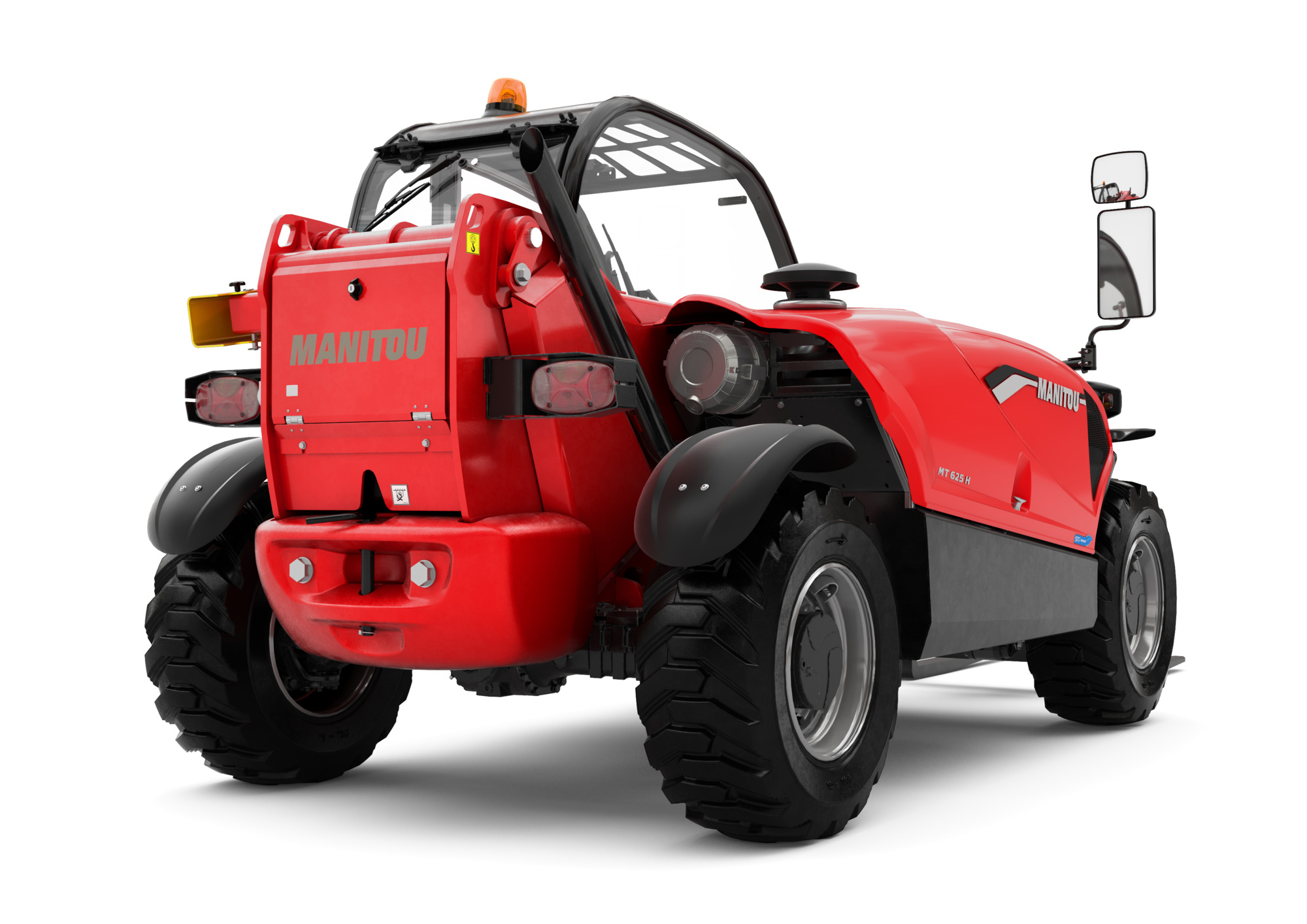

The MT 625 H telehandler is specially designed for building sites and renovation projects involving lower heights.

Its compact dimensions – with a width of 1.8 m and under 2 m in height – mean you can easily pass under thresholds and navigate congested areas. Its 3.3 m turning radius and 3 steering modes available provide you with excellent maneuverability. Easy to use, this handler features an ergonomic instrument panel and JSM-equipped joystick to easily execute all machine funtions in one control. The MT 625 H has a lift capacity of 2.5 t, with a maximum lift height of 5.85 m.

Its 75 hp engine reaches speeds of up to 25 km/h.
